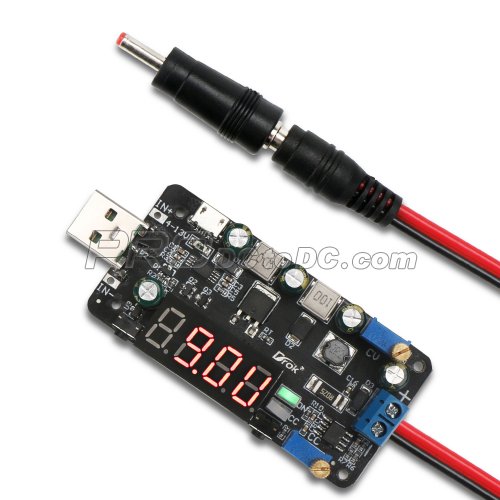

15W Regulator/Adapter/USB Input Converter DC 4~13V to 0.5~30V 2A Power Supply module DC 5V 12V 24V Driver with LCD Display

  • Item ID #200434
Qty.:

List Price: $17.50 Our Price: $6.90Save 61%

Price(per unit)
1-4
$6.90		 5-9
$6.56		 10-19
$6.21		 20-29
$5.87		 30+
$5.52
Buy More: please contact us

It is a Adapter/Regulator/Power Supply module. Input voltage range: DC 4~13V. Output voltage range: DC 0.5~30V. Output current: 0~2A. Output power: lower than 15W. Application: DIY Power adapter, industrial equipments, electronic equipment, Communications Equipment, etc.


Other Products in Bare board Power Supply

page 1 of 2 Previous Page Next Page
Parameter:
  • Input voltage range: DC 4~13V (When using solder terminal as input port, please do not connect the positive and negative20 reversely, and do not connect AC power supply).
  • Output voltage range: DC 0.5~30V
  • Output current: 0~2A (When under CV mode, the output current is automatically adapted to the load and cannot be adjusted manually. Assume that the limit current is set to be 1A, then when the load current > 1A, it willenter CC mode automatically, and the max output current is 1A).
  • Output power: lower than 15W (When output power is greater than 15W, it will automatically turn off output and display -OP-. After lower the load power, press ON/OFF button).
  • Voltage resolution: 0.1V
  • Default voltage accuracy:±0.1V
  • Current resolution: 0.01A
  • Measurement current range: 0~2.2A
  • Default current accuracy: ±0.05A
  • Power display: 0.00W~15.0W
  • Working current: about 30mA
  • Cable length: 268mm
Protection:
  • Shrot-circuit protection;
  • Over-current protection;
  • Over-voltage protection;
  • Over-power protection;
  • Over-temperature protection
  • Charging anti-backflow protection
Package Included:
  • 1 x Adjustable Voltage Regulator ( Power Supply module/Regulator/Adapter )
