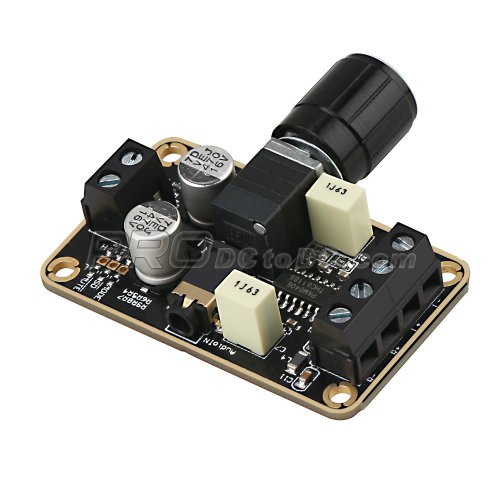

2 x 5W Digital Amplifier DC 5V HIFI Class D Audio Amplifier Board Dual-channel D type Power Amplifier Module
larger image
Previous Page
  • 2 x 5W Digital Amplifier DC 5V HIFI Class D Audio Amplifier Board Dual-channel D type Power Amplifier Module
  • 2 x 5W Digital Amplifier DC 5V HIFI Class D Audio Amplifier Board Dual-channel D type Power Amplifier Module
  • 2 x 5W Digital Amplifier DC 5V HIFI Class D Audio Amplifier Board Dual-channel D type Power Amplifier Module
  • 2 x 5W Digital Amplifier DC 5V HIFI Class D Audio Amplifier Board Dual-channel D type Power Amplifier Module
  • 2 x 5W Digital Amplifier DC 5V HIFI Class D Audio Amplifier Board Dual-channel D type Power Amplifier Module
  • 2 x 5W Digital Amplifier DC 5V HIFI Class D Audio Amplifier Board Dual-channel D type Power Amplifier Module
  • 2 x 5W Digital Amplifier DC 5V HIFI Class D Audio Amplifier Board Dual-channel D type Power Amplifier Module
  • 2 x 5W Digital Amplifier DC 5V HIFI Class D Audio Amplifier Board Dual-channel D type Power Amplifier Module
  • 2 x 5W Digital Amplifier DC 5V HIFI Class D Audio Amplifier Board Dual-channel D type Power Amplifier Module
  • 2 x 5W Digital Amplifier DC 5V HIFI Class D Audio Amplifier Board Dual-channel D type Power Amplifier Module
  • 2 x 5W Digital Amplifier DC 5V HIFI Class D Audio Amplifier Board Dual-channel D type Power Amplifier Module
Next Page

2 x 5W Digital Amplifier DC 5V HIFI Class D Audio Amplifier Board Dual-channel D type Power Amplifier Module

  • Item ID #2001711002
Qty.:

List Price: $15.50 Our Price: $4.20Save 73%

Price(per unit)
1-4
$4.20		 5-9
$3.99		 10-19
$3.78		 20-29
$3.57		 30+
$3.36
Buy More: please contact us

It is a 2 x 5W Dual-channel Class D Digital Amplifier, Working voltage: DC 5V (please don't use more than 5V, or the IC will be burnt), Application: Suitable for MP3/MP34/Mobile Phone/laptop external speakers etc


Other Products in Amplifier/Power Supply

page 1 of 2 Previous Page Next Page
Parameters:
  • Working voltage: DC 5V (please don't use more than 5V, or the IC will be burnt)
  • Output power: 5W 2Ω 5V 3W 4Ω 5V 1.8W 8Ω 5V
  • Input method: single-ended
  • Dimension: 55.12*32.26mm
Performance:
  • Efficiency: >90%
  • General harmonic distortion & Noise: <10%
  • Low quiescent current
  • Noise suppression
  • Protection: Against reverse connection of power input; Short circuit; Over heat; EMI is allowed to pass
Additional function:
  • 1. Available to connect amplifier type to choose different function (MODE: high electricity level is Type D, low electricity level is Type A, B. Factory defaults high electricity level)
  • 2. Available to add an external Shutdown ( SD: the chip will be Shutdown at low electricity level, factory defaults high electricity level )
  • 3. Available to add a Mute (the chip will be at mute mode when low electricity level, factory defaults high electricity level)
Package includes:
  • 1 x 5W*5W D type Digital Audio Amplifier ( Power Amplifier )
