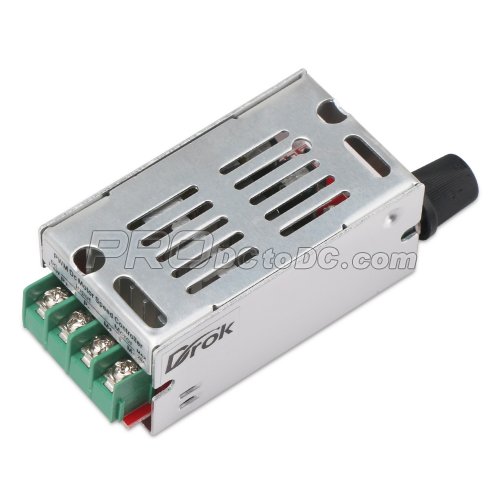

480W PWM Stepless Speed Control Module DC 12~60V Motor Speed Controller 10A Pulse Width Modulation Module/Speed Regulator

  • Item ID #090649
Qty.:

List Price: $18.50 Our Price: $6.80Save 63%

Price(per unit)
1-4
$6.80		 5-9
$6.46		 10-19
$6.12		 20-29
$5.78		 30+
$5.44
Buy More: please contact us

It is a Motor Speed Controller/Speed Regulator/PWM Stepless Speed Control Module, Operating voltage: DC 12V~60V, Output current: 10A Max, Control power: 0~480W, It has small size, high efficiency, long term stable and reliable quality,easy installation and use . Especially Suitable for regulation of low-voltage electric wire fever, such as: cutting styrofoam, EPE, raincoat production, galvano cautery painting,and other equipment etc.


Other Products in DC Regulator

page 1 of 2 Previous Page Next Page
Parameters:
  • Operating voltage: DC 7~60V
  • Drive current: 10A Max.
  • Control power: 0~480W Max.
  • Quiescent current: 0.02A (standby)
  • PWM duty cycle: 1% -99%
  • PWM frequency: 12khz
  • Module: ZS-X1A
  • Dimensions: 70 x 39 x 31 mm
Features:
  • Resettable fuse: will turn-off automatically when it is overcurrent. the fuse can self-rest after power-off and few seconds' cooling. so it allows stable performance and small heating.
  • Power supply reversed protection: the module will not burn even when its positive and negative pole of input are connected reversedly.
  • Adjust the potentiometer in clockwise direction for increasing and in anti-clockwise direction for decreasing. When you adjust potentiometer in anti-clockwise direction till its max width, you would turn off power supply output.
  • Aluminum shell prevents it from easily damaged. There are holes in its sides and bottom, making it easier to install. Also, it adopts FR4 double panel and reasonable circuit arrangement for more stable performance.
How to use:
  • Connect this device with lamp or work equipment or electric circuit and rotate the knob for dimming, speed, voltage, temperature control.
Main application:
  • Especially suitable for regulation of low-voltage electric wire fever, such as: cutting styrofoam, EPE, raincoat production,galvanocautery painting,and etc.
Package Includes:
  • 1 x PWM Motor Speed Controller (Speed Regulator)
