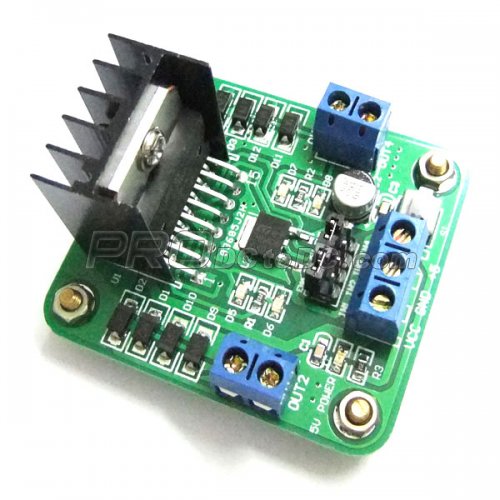

Controller L298N Dual H Bridge DC Stepper Motor Drive Control module for arduino stepper motor smart car robot

  • Item ID #090051
Qty.:

List Price: $8.00 Our Price: $6.80Save 15%

Price(per unit)
1
$6.80		 2-4
$6.46		 5-9
$6.12		 10-29
$5.78		 30+
$5.44
Buy More: please contact us

It is a Controller/L298N Drive module, Voltage Range: Driven part of the terminal supply area Vs +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs +7 V ~ +35 V. It has small size, long term stable, reliable quality,easy installation and use. Applied to Stepper Motor Driver,Robot ,DIY ect.


Other Products in Bare board Power Supply

page 1 of 2 Previous Page Next Page
Feature
  • Driver: L298N Dual H Bridge DC Motor Driver IC
  • Driven part of the terminal supply area Vs: +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs: +7 V ~ +35 V
  • Driven part of the peak current Io: 2A
  • The logical part of the terminal supply area Vss: +5 V ~ +7 V (can take power within the board +5 V)
  • The logical part of the operating current range: 0 ~ 36mA
  • Control signal input voltage range:
  • Low:-0.3V ≤ Vin ≤ 1.5V
  • High: 2.3V ≤ Vin ≤ Vss
  • Enable signal input voltage range:
  • Low: -0.3 ≤ Vin ≤ 1.5V (control signal is invalid)
  • High: 2.3V ≤ Vin ≤ Vss (control signal active)
  • Maximum power consumption: 20W (when the temperature T = 75 °c)
  • Storage temperature: -25 °c ~ +130 °c
  • Driver Board Size: 55mm * 49mm * 33mm (with fixed copper pillar and the heat sink height)
  • Driver Board Weight: 33g
  • Other Extensions: control of direction indicators, the logic part of the plate to take power interface.
Package includes:
  • 1 x L298N Motor Driver Module ( Controller )
