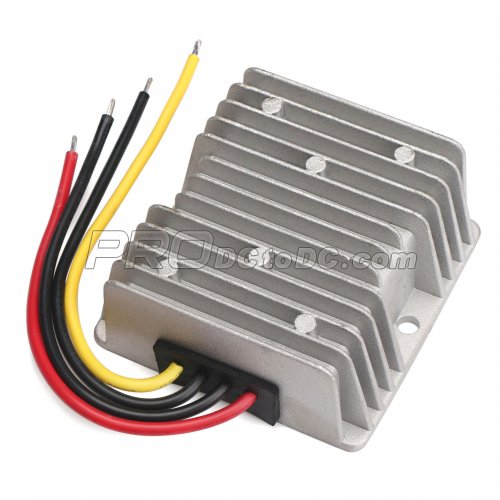

Power Supply Module DC37V-60V 48V to 12V 15A 180W Buck Converter/Voltage Regulator/Power Adapter/Driver Module

Features:

• Module Properties: Synchronous rectification, low heat ,DC Buck Converter.
• Input voltage: DC48V (wide voltage 37V-60V)
• Output voltage: DC12V
• Output Current: 15A 180W
• Peak Output Current: 25A
• Ripple: 100MV
• Working temperature: -40 °c ~ +85 °c (industrial temperature)
• Size specifications: 74 * 74 * 32 mm
• Shock, moisture, dust-proof
• Efficient conversion rate: more than 93%
• Protection: Enter the high-voltage transient protection, output over-current protection, output short circuitprotection, thermal protection chip.
• Welding line:

  • Input: red line(+) black line (-)
  • Output: yellow line (+) black line (-)
• Application: Large trucks/Taxi radio /EMU/Car audio/LCD TV/Advertising screen/Monitoring System/Solar Power and DIY etc.

Package include:

• 1 x DC Buck Converter.( Power Supply Module/Adapter/Driver )
